Thru Tubing Technology

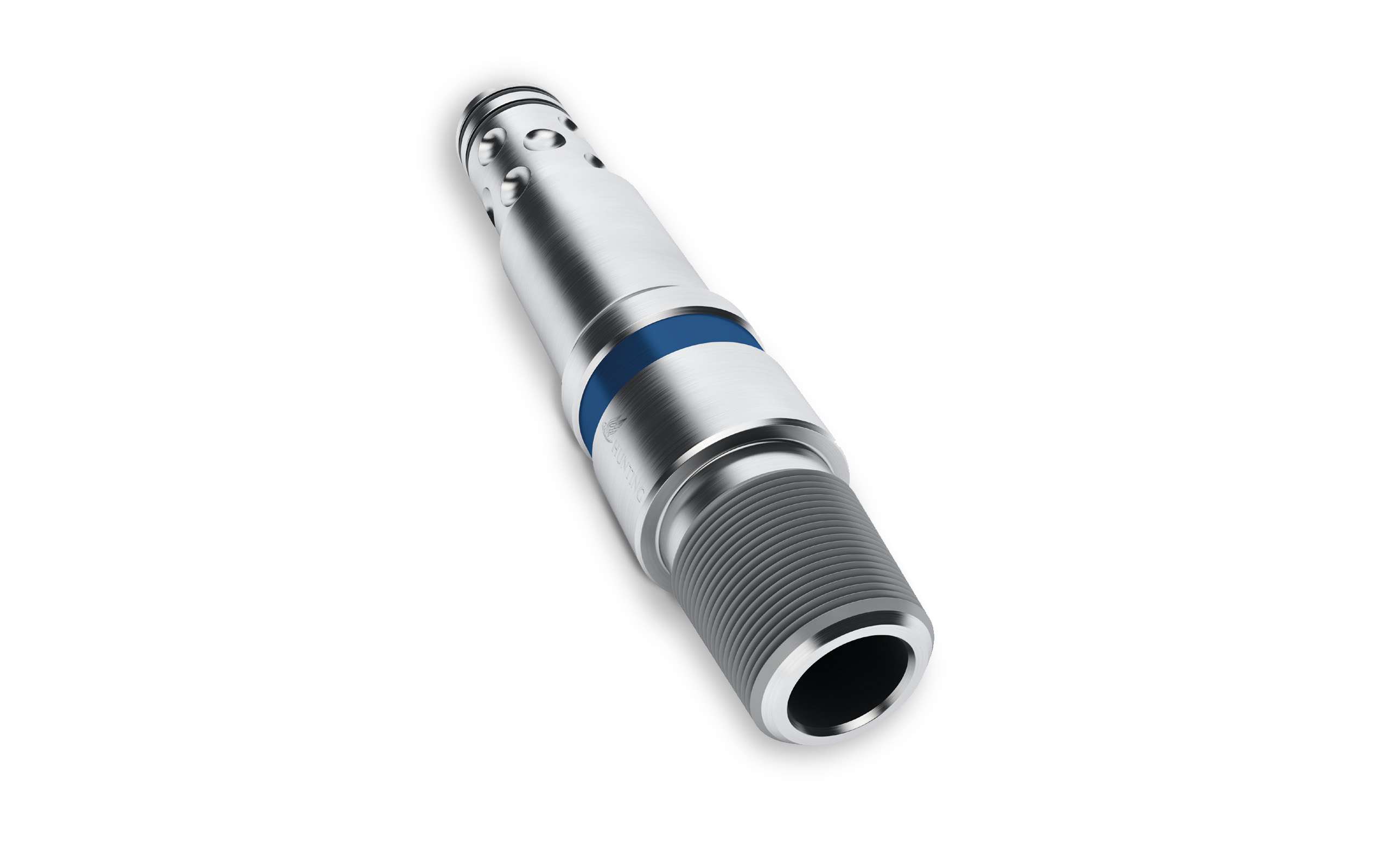

Dimple-On Connector
The Dimple-On Connector is a one-piece design providing a robust, cost effective means of attaching a BHA to the coil.
Product summary
The one-piece design incorporates two O-ring grooves providing added security in high-pressure applications. The Dimple-On Connector has superior mechanical strength comparable with tubing with the dimple design enabling torque-through capability.
Although the connectors are supplied with standard through-tubing tool joints, they can also be cut to suit customer requirements. The connector is reusable and furnished with standard O-rings making it extremely easy to redress in the field.
The Dimple-On Connector is available for any combination of coil tubing and thread size.
Features
Robust and cost effective means of attaching a BHA to the coil
Available in sizes 1-1/4 inches to 2-7/8 inches
One-piece design
Provides superior mechanical strength
Available with standard through-tubing tool joints or specially cut to customer requirements
Any combination of coil tubing and thread size
Benefits
Two O-ring grooves provide added security in high-pressure applications
Dimple design provides torque-through capabilities
Reusable connectors furnished with standard O-rings simplifying field redress
