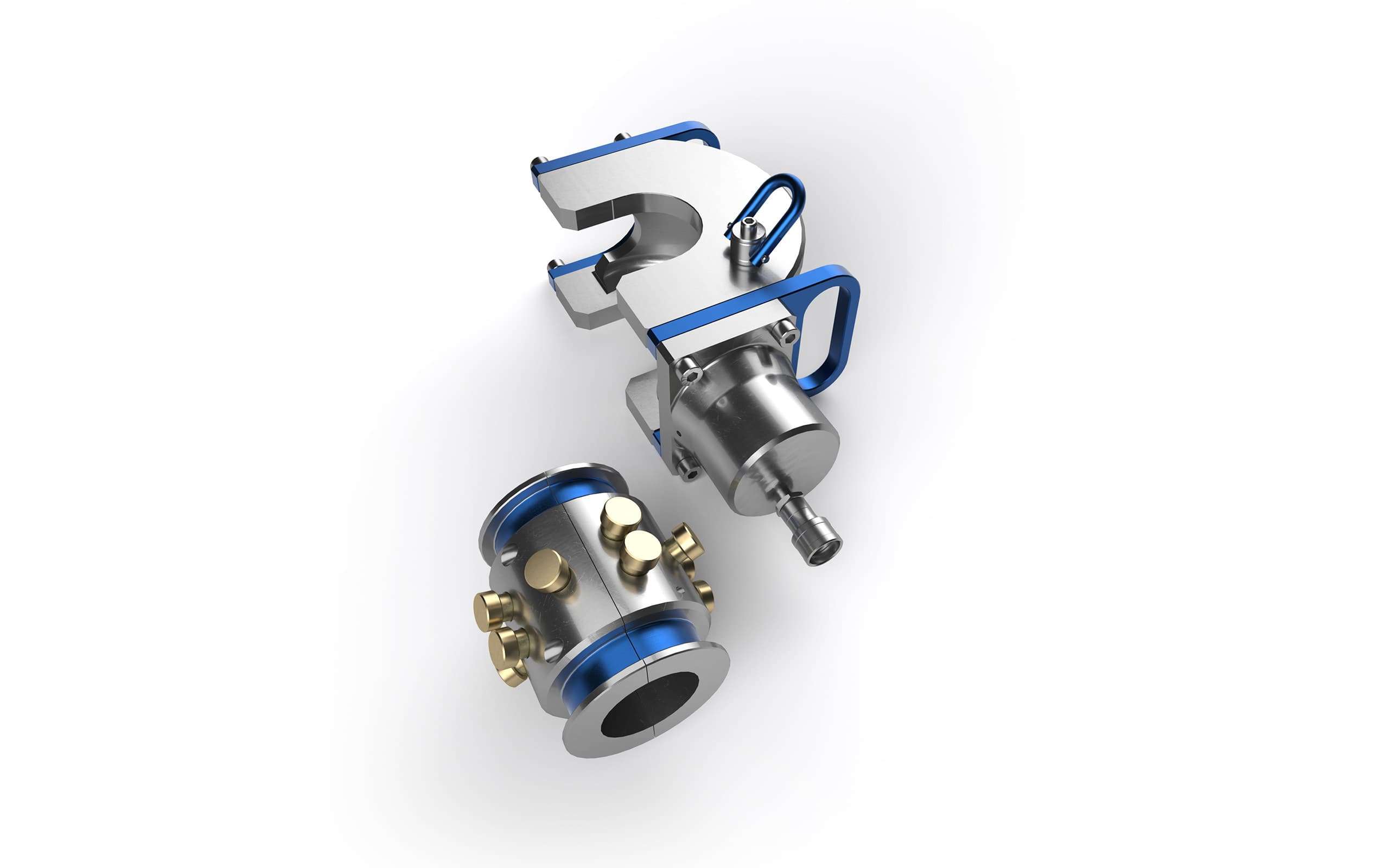

Hydraulic Dimpling Jig & Yoke rendering

Hydraulic Dimpling Jig & Yoke

A hand-operated system that secures the internal dimple coil connector to the coil tubing.

Product summary

The hydraulic dimple jig is a hand-operated system that secures the internal dimple coil connector to the coil tubing.

Once the coil has been prepared with the ICRS, the internal dimple connector is installed into the coil and Jig is assembly and orientated around the connector. The bolts are then pressed in succession using the yoke forming the coil into the dimples on OD of the connector.

Features

  • Alignment feature for correct positioning

Benefits

  • Fast deformation of coils into dimples
