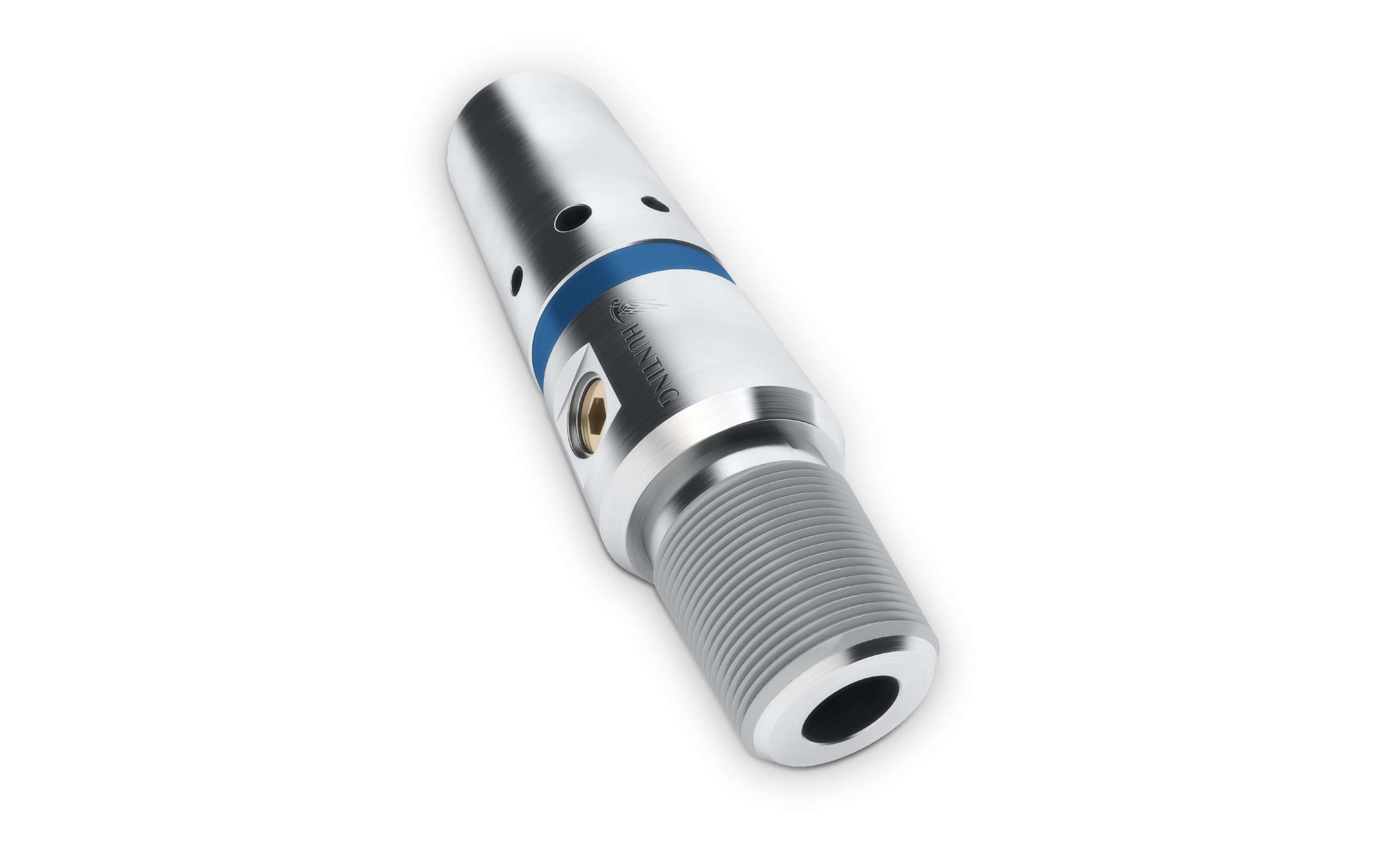

Dual Circulating Sub rendering

Dual Circulating Sub

The Dual Circulating Sub is designed as a circulating safety component within the BHA. The design features a Shear-Out Ball Seat coupled with a Burst Disc.

Product summary

The Dual Circulating Sub is designed as a circulating safety component within the BHA. The design features a Shear-Out Ball Seat coupled with a Burst Disc.

In the event that circulation is lost during a coiled tubing operation, an increase in applied pressure to the tubing will burst the disc, which will regain a sufficient circulation rate to pump a ball.

Pressure can then be applied to the tubing to shear the shear screws and shift the piston to regain maximum circulation.

Features

  • Designed as a circulating safety component within the BHA

  • Design features include a shear out ball seat coupled with a burst disc

Benefits

  • Field redressable

  • Simple drop ball design to activate
