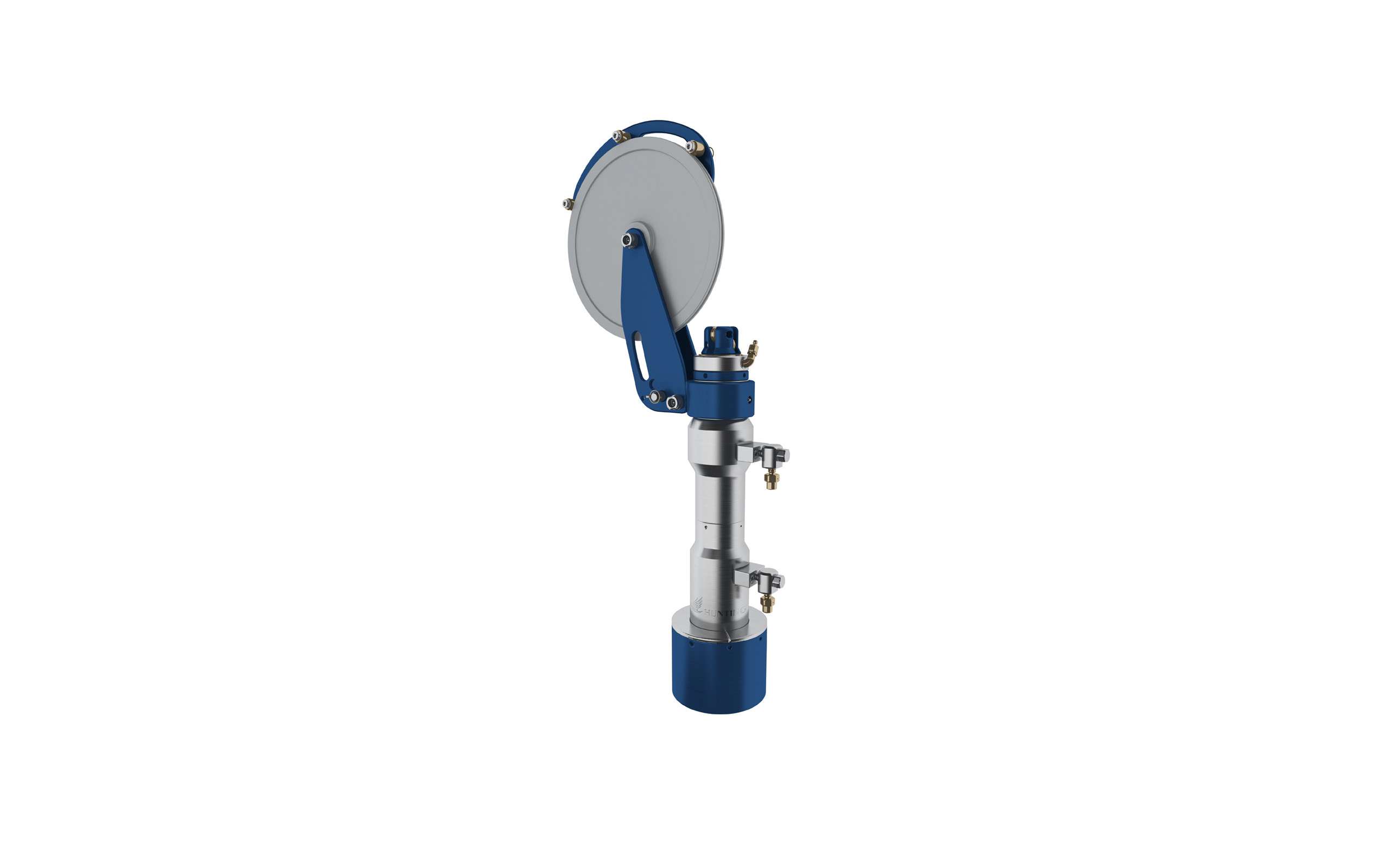

15K Ezi-Load™ Liquid Seal

Unlike traditional stuffing boxes, the seal is created by filling the void between flowtubes and the wire with viscous grease. One of the main benefits of this system is the creation of a reduced friction system that can aid jarring reaction and toolstring selection.

The Hunting 15K Ezi-Load™ Liquid Seal Stuffing Box is suitable for slicklines up to 0.160” with aluminium or composite sheaves matched to the line sizes selected.

The removable cartridge offers the benefits of being able to topload, the toolstring through the liquid seal body (and Ezi-Load™ tool catcher if fitted) with reduced potential damage to the line. Being able to slide the cartridge along the line and into position, whilst observing the process for issues, leads to a safer operation. Line damage can be time consuming and costly due to the introduction of technology cables. The Hunting Ezi-Load™ Liquid Seal greatly reduces this risk.

The cartridge system reduces potential injury from manual handling. Guide wheels above the piston ensure that the lines run fully centralised reducing wire tracking damage to the piston and line.
