Wireline Selective Firing Systems

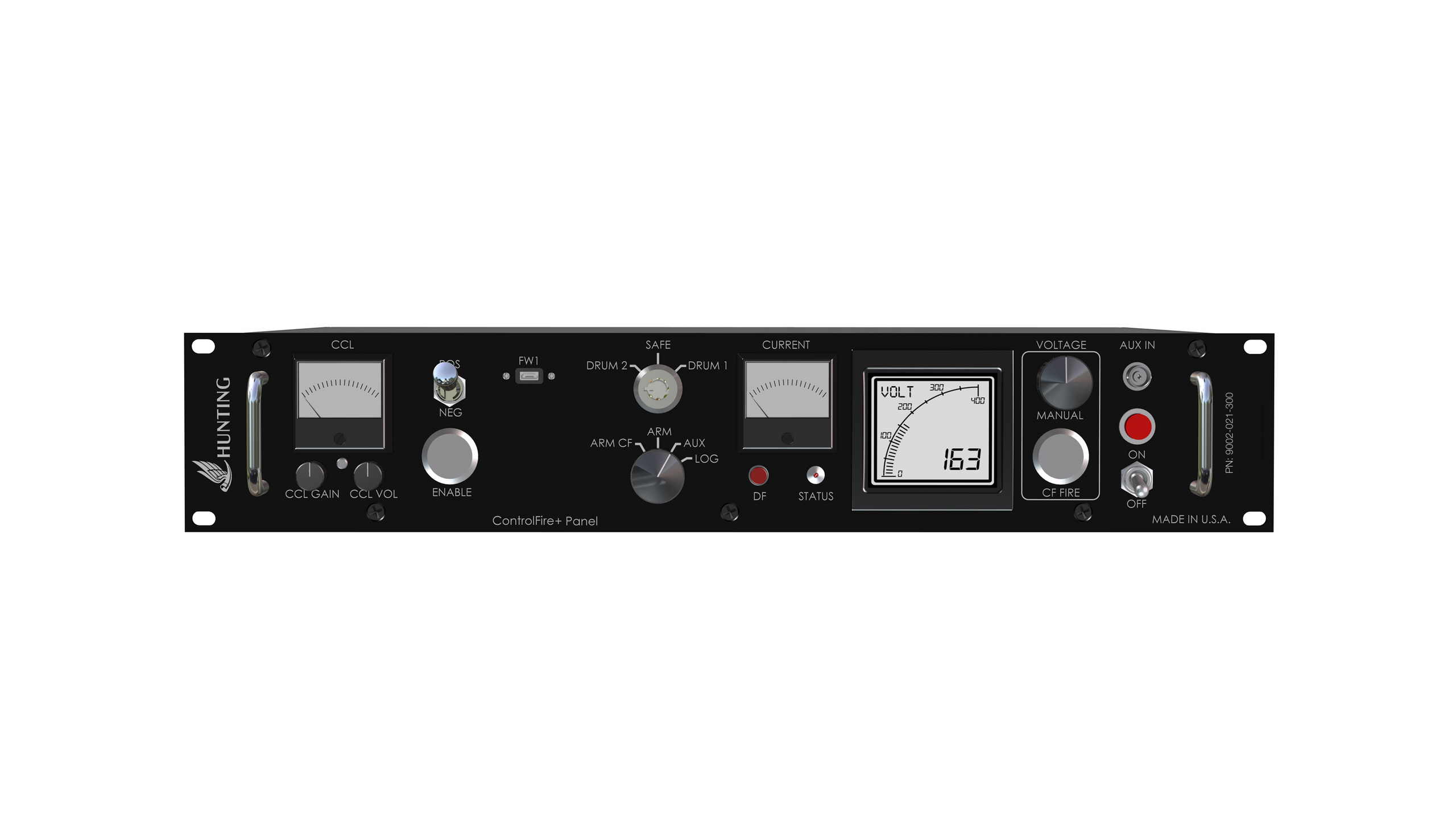

ControlFire+ Panel
The ControlFire+ Shooting Panel® from Hunting Titan conveniently integrates multiple surface systems into a single, compact package to simplify your perforating operations.
Product summary
The ControlFire® Perf+ Panel from Hunting Titan conveniently integrates multiple surface systems into a single, compact package to simplify and automate your perforating operations.
The ControlFire + Shooting Panel combines the shooting power supply and the ControlFire surface panel into a single 2U (3.5”) rack mount panel, significantly reducing the cost and footprint of perforating hardware in the wireline unit. Moreover, the ControlFire+ system features a software driven shooting power supply and push-button firing control to eliminate human error and expedite the perforating process. The ControlFire+ Panel is compatible with both conventional pressure switches and ControlFire addressable switches and allows for either roll-up or push-button firing. Perforating “on the fly” is faster and easier than ever with the upgraded switch communication protocol. The Panel is compatible with existing acquisition systems, satisfies the recommendations set forth in API RP-67 and is CE certified.
Features
Combines shooting panel and ControlFire panel
Software controlled shooting power supply
Upgraded ControlFire+ communication protocols
Universal 90-264VAC Power Supply
Benefits
Reduces perforating hardware in WL unit
Eliminates switch damage caused by manual over-current output
50% faster switch communication and reduced USB dropouts
Eliminates need for a power supply transformer
Image gallery
ControlFire+ Software
Download the latest version of our or learn more about ControlFire+ Software here.
The ControlFire+ Software is our perforating and data acquisition software and the user interface when implementing the ControlFire switch system for the ControlFire Perf+ Panels.
Requires Microsoft Windows XP/7 or greater.
