Logging And Perforating Instruments

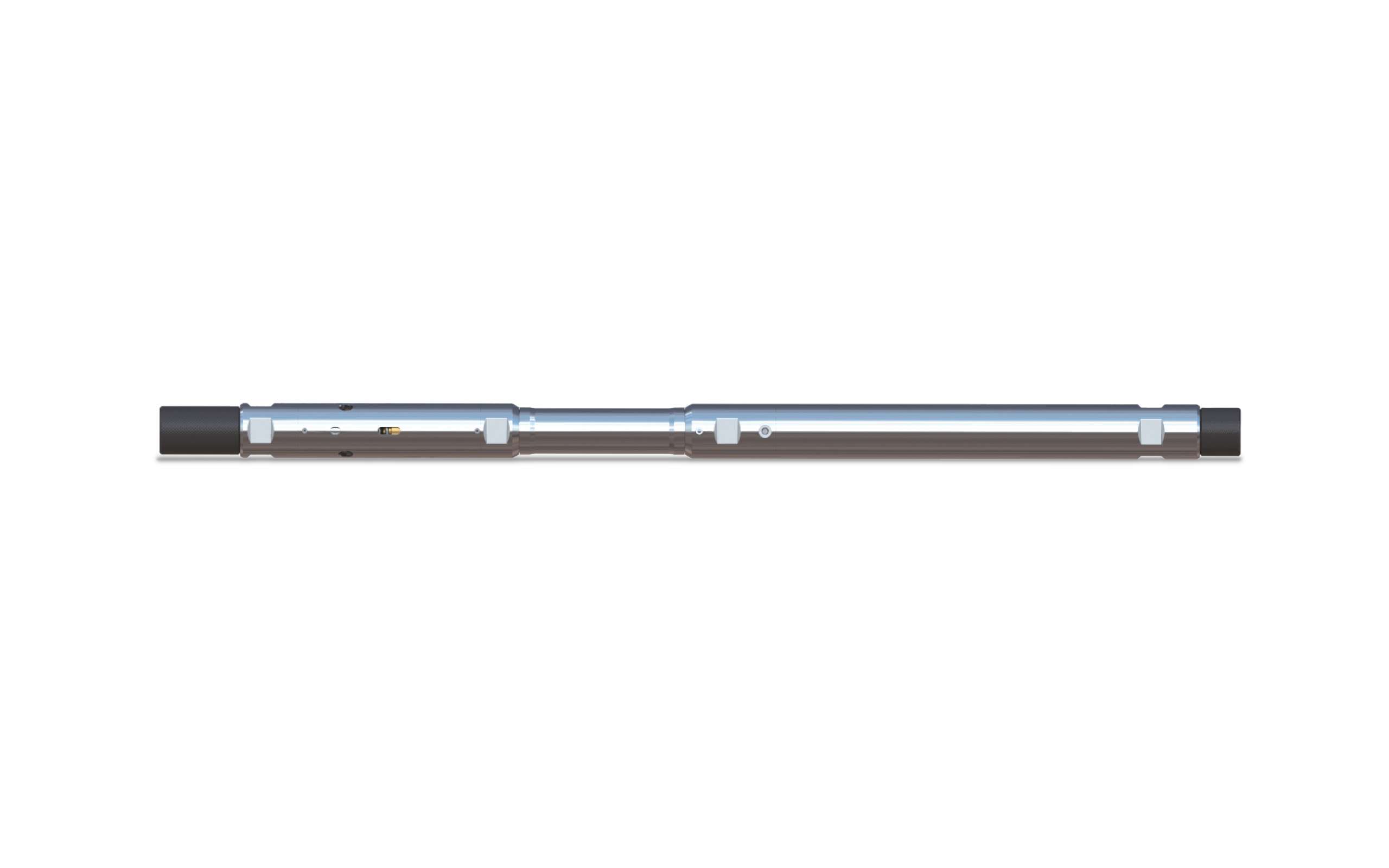

NST-Noise Spectrum Tool
The Noise Spectrum Tool is designed to measure downhole noise in the frequency range 100Hz to 12.7kHz.
Product summary
The Noise Spectrum Tool is designed to measure downhole noise in the frequency range 100Hz to 12.7kHz.
The downhole noise may be generated in different frequencies by the fluid flowing both inside and outside the casing. By analyzing the frequency spectra of noise, the nature of fluids may be determined and leaks located.
The Noise Spectrum Tool is applicable to oil/gas/water wells. When combined with the temperature tool and flowmeter, the NST string features the significantly improved accuracy and success rate in locating leak and cement channeling.
Additionally, the NST33 performs real-time monitoring of downhole noise and the audio signal can be saved and played back.
Applications
Location of the production intervals and assessment of the capacity.
Fluid characterization and flow rate assessment.
Detection of the cement channeling behind casing, casing leaks, backflow,
Sand production and measurement of packer performance.
Determination of the formation structure behind casing.
Combination with PLT in logging.
Features
Digital transmission
Large detection radius
Detect noise through multiple barriers
Real - time transmission and saving of audio signal
