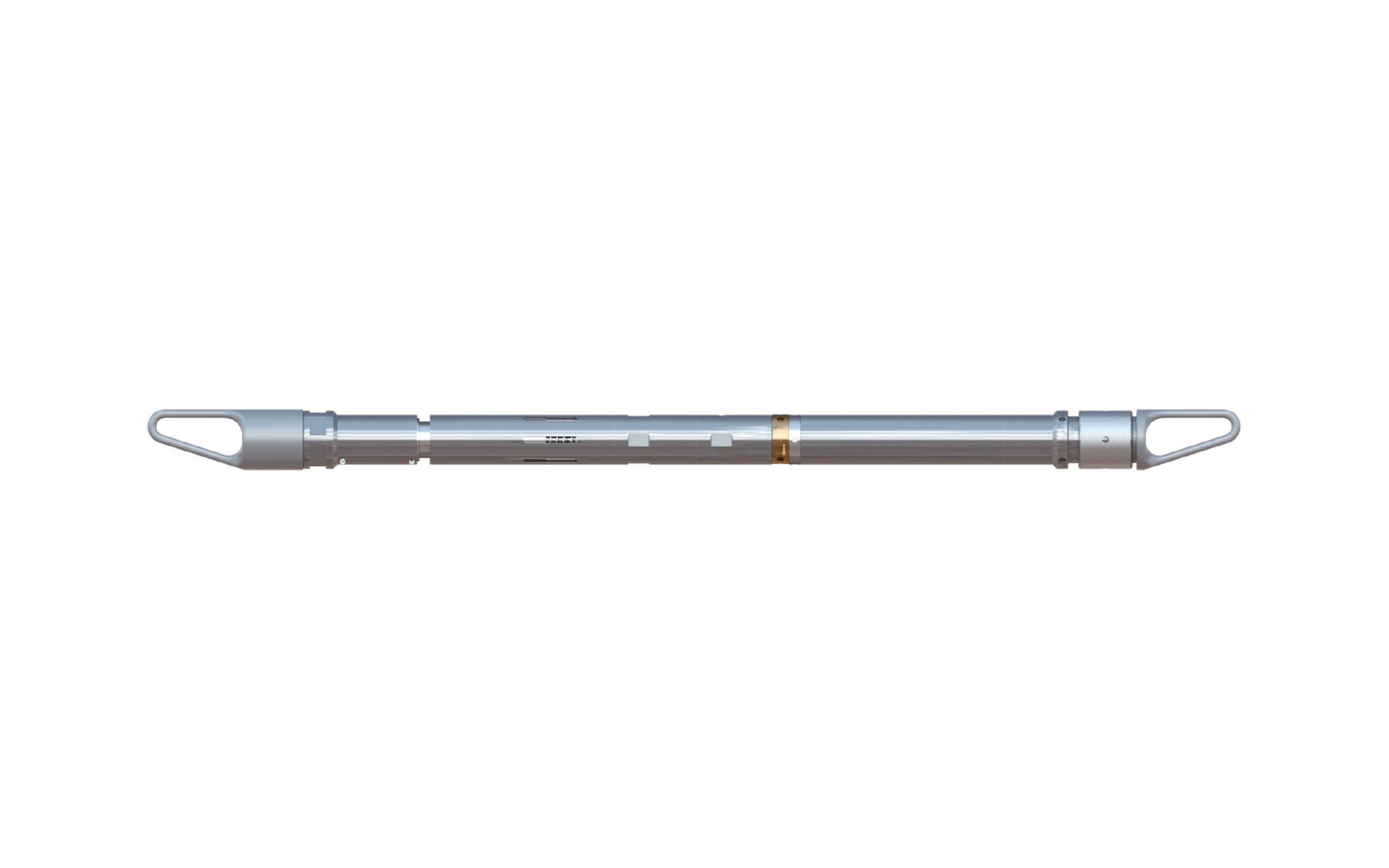

CTT tension tool - long metal tube hanging attachments

CCT-CCL Tension Tool

The CCT-CCL Tension Tool determines the tool depth by measuring the number of casing collars

Product summary

The CCL/Tension Tool (CTT02) is connected below the swivel sub and above TCC (tractor control cartridge). The tool determines the tool depth by measuring the number of casing collars. The tension tool measures the longitudinal force applied on the toolstring, which may be generated by upward stretching and downward compression.

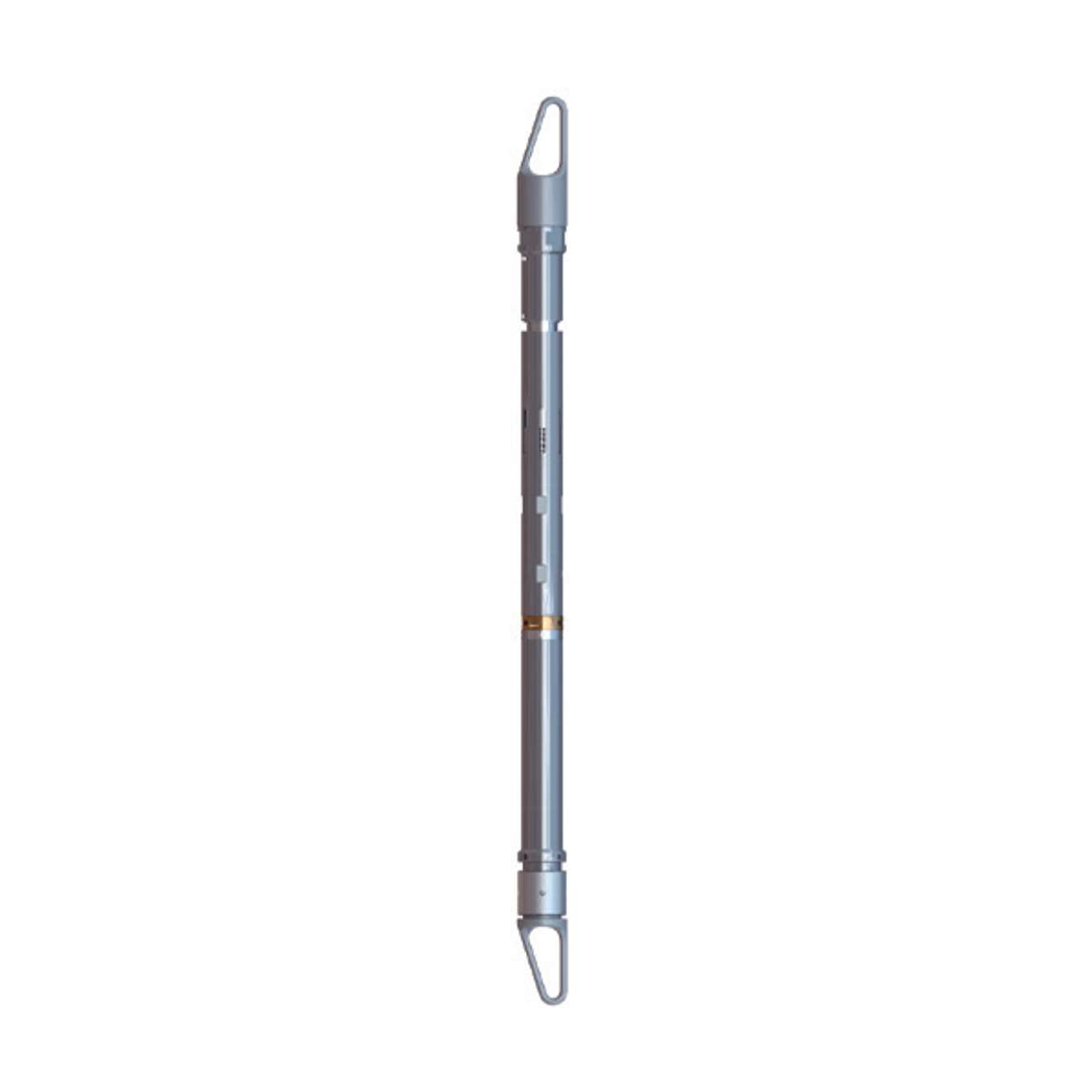

  • CTT02

    85.8mm (3 3/8”) - Eight-conductor - CCL: 296mm (11.65”) Tension: 682mm (26.85”)

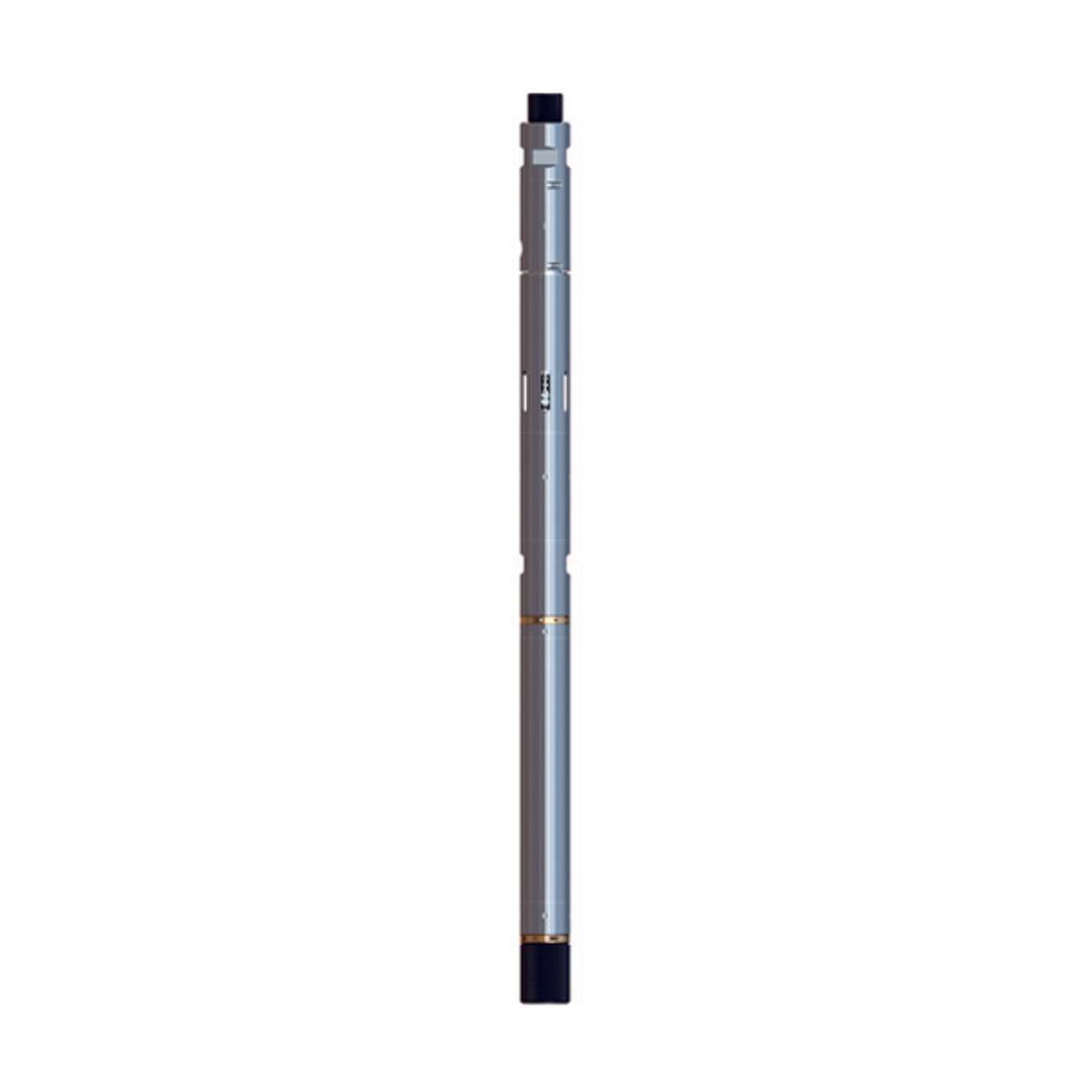

  • CTT05

    54mm (2 1/8”) - - - CCL: 197mm (7.76”) Tension: 514.7mm (20.26”)

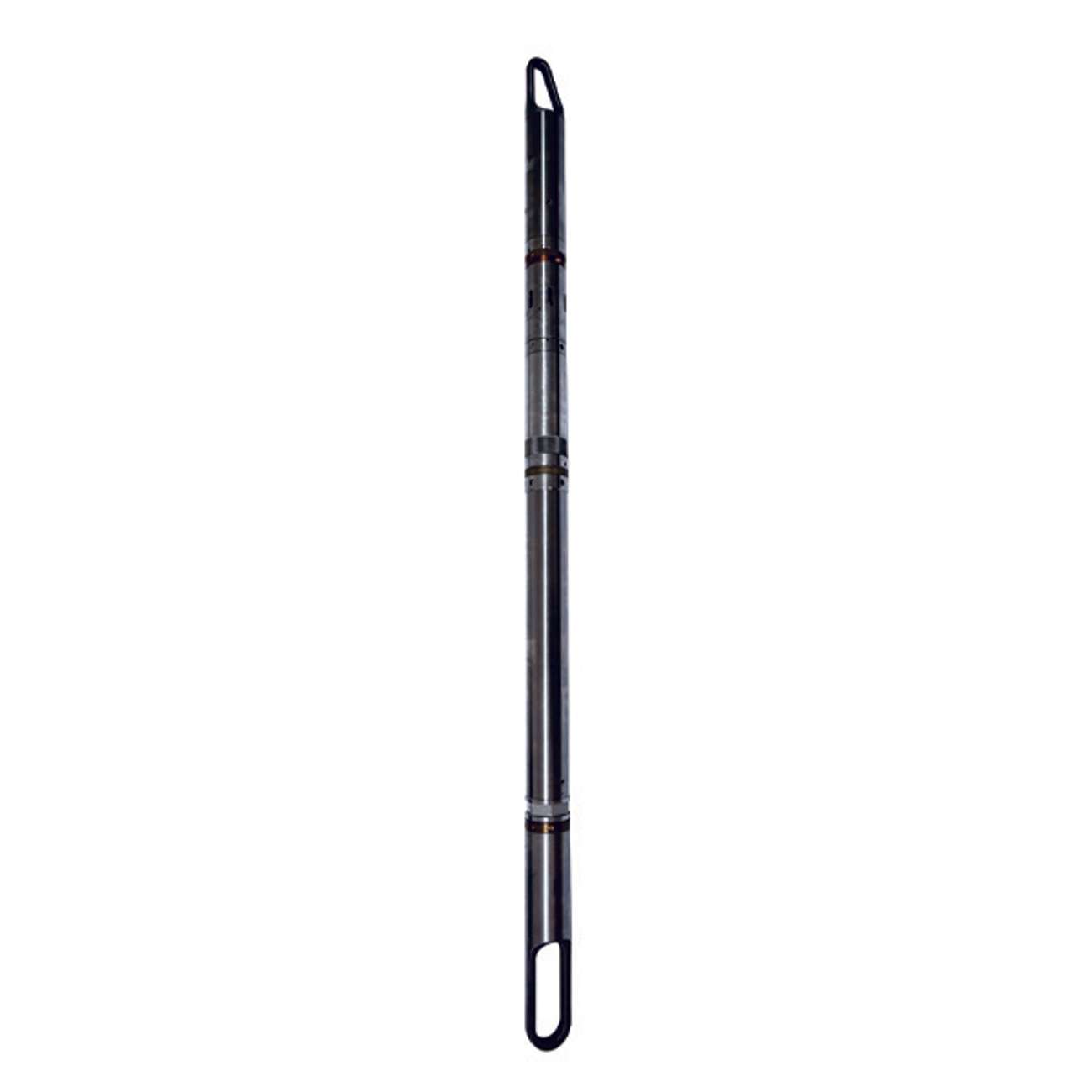

  • CTT06 - Rugged

    73mm (2.87") - Three-conductor - -

Applications

  • Avoid breakage of weak point

  • Monitor friction of the tool

  • Monitor tool stuck condition

  • Measure casing collars for depth confirmation
