Wireline Spear

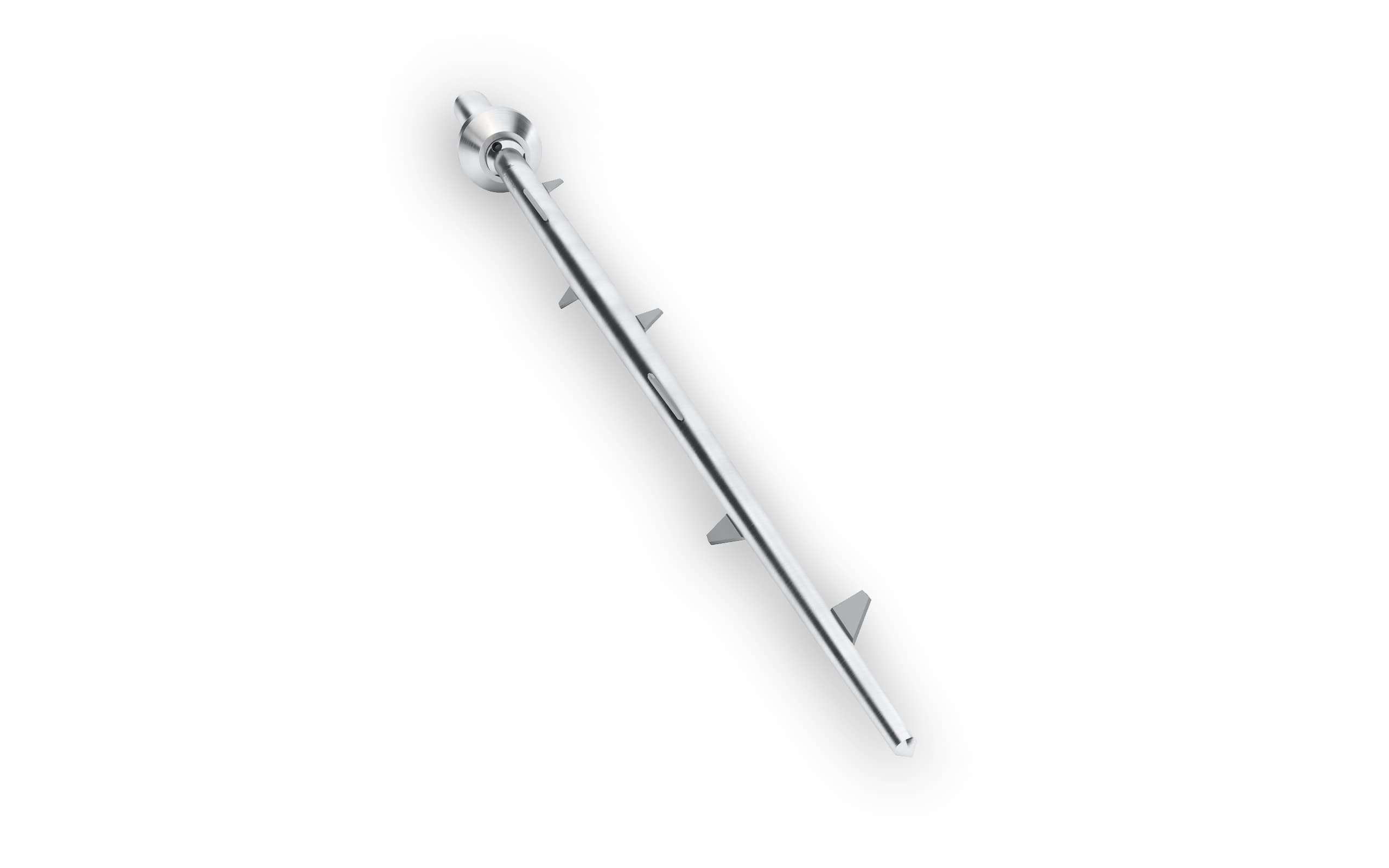

The Coiled Tubing Wireline Spear consists of a box up connection with a centre prong extending downwards. Pointed barbs are welded to the prong in order to form hooks that catch the looped end of the broken wire. A Stop Ring with a specific outer diameter is fitted to the prong and additionally, the Wireline Spear also allows flow through.

The Wireline Spear Stop Ring can be gauged for the tubing it is to be run in. The prong ends of the Spear will increase in outer diameter until just below the diameter of the Stop Ring.
