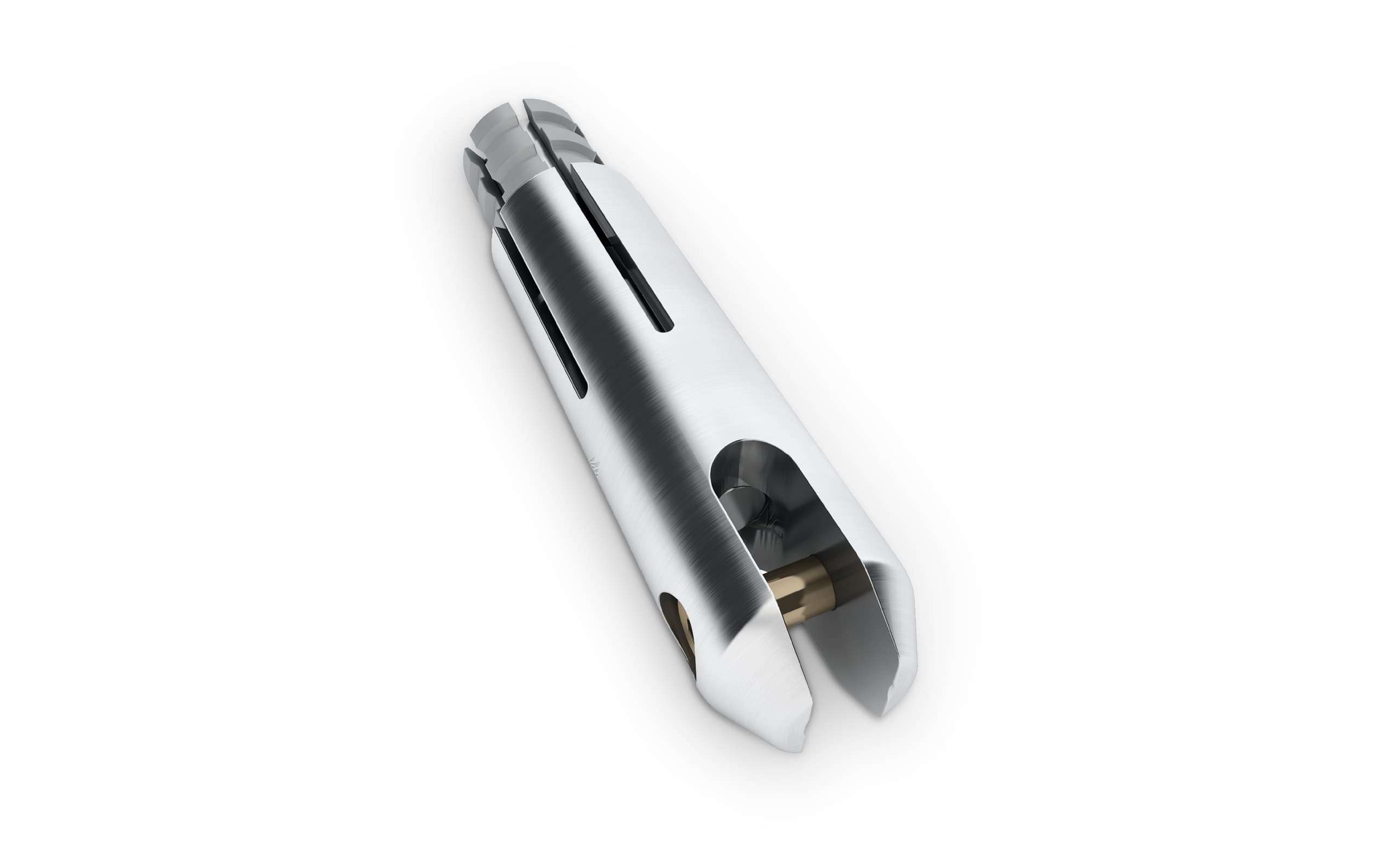

Quick Stabbing Tool

To fit the Quick Stabbing Tool, the inner core is pushed fully into the body, de-supporting the latch fingers. A slot is lined up with the bead in the coil, and then it is easily pushed into the coil bore. Next, the inner-core is pushed back in, supporting the fingers. The coil is then rolled onto the Tool, which can be connected to the winch so that the coil can be pulled into the injector head.

To remove the Tool, the coil is cut just above the rolled coil. The piece of coil is then gripped in a vice and the core is knocked back from under the fingers, allowing them to collapse. The Quick Stabbing Tool can then be pulled from the coil without the need to grind or split the coil.
