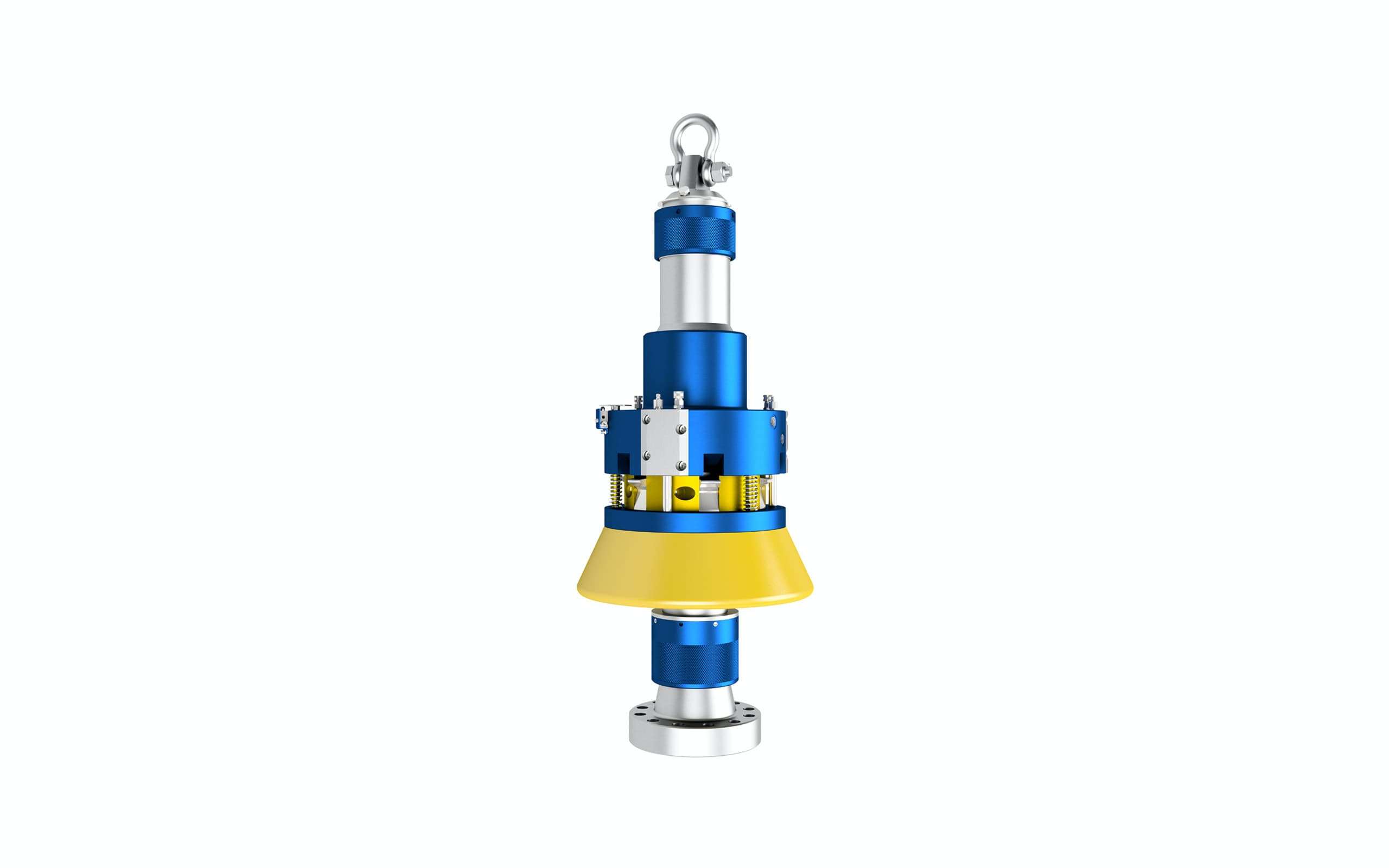

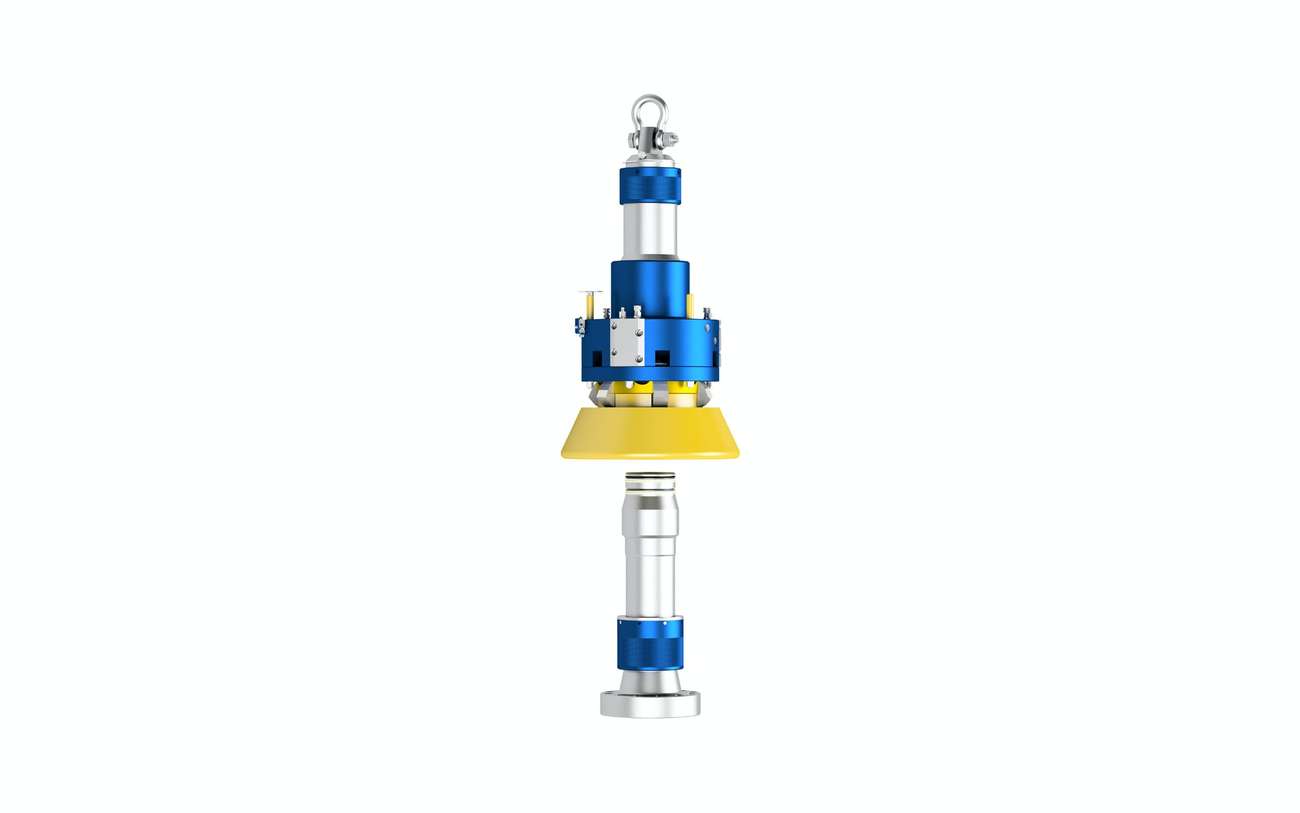

Inverted Ezi-Latch
The Inverted Ezi-Latch is designed to quickly connect the Pressure Control Tool String or Night Cap to the Wellhead.
Product summary
The Inverted Ezi-Latch is designed to quickly connect the Pressure Control Tool String or Night Cap to the Wellhead.
The Hunting Ezi-Latch (Hydraulic Wellhead Connector) is designed to quickly connect the Pressure Control Tool String or Night Cap to the Wellhead using hydraulics, removing human intervention and risk of injury.
The Inverted Ezi-Latch uses the same hydraulics and latching system as the original Ezi-latch, with the removal of the Night Cap Arm. Connecting the system to the PCE string instead of the Wellhead means less equipment is required to operate a multi pad well.
Our simplicity in design, developed from our existing Ezi-Catch Tool Catcher, will make rigging up and down quicker, safer and easier for our customers.
The failsafe design features 3 hydraulic cylinders that are remotely actuated to set a lock ring securing the Ezi-Latch connection and lock it in position. Once locked in place, it provides a pressure tight barrier to begin operations, controlled via a stand alone hydraulic control panel.
The unique profile of the lock ring and the use of springs ensure the lock ring will always stay in position in the event of hydraulic failure.
Features
Hydraulically controlled connection
Failsafe design
15,000psi working pressure
Large entry guide funnel
Indicator rods to verify locked/unlocked position
Benefits
Reduces personnel exposure in the red zone
Ease of use
Fast connection changes
Reduces risk of injury
Reduces rig up time
