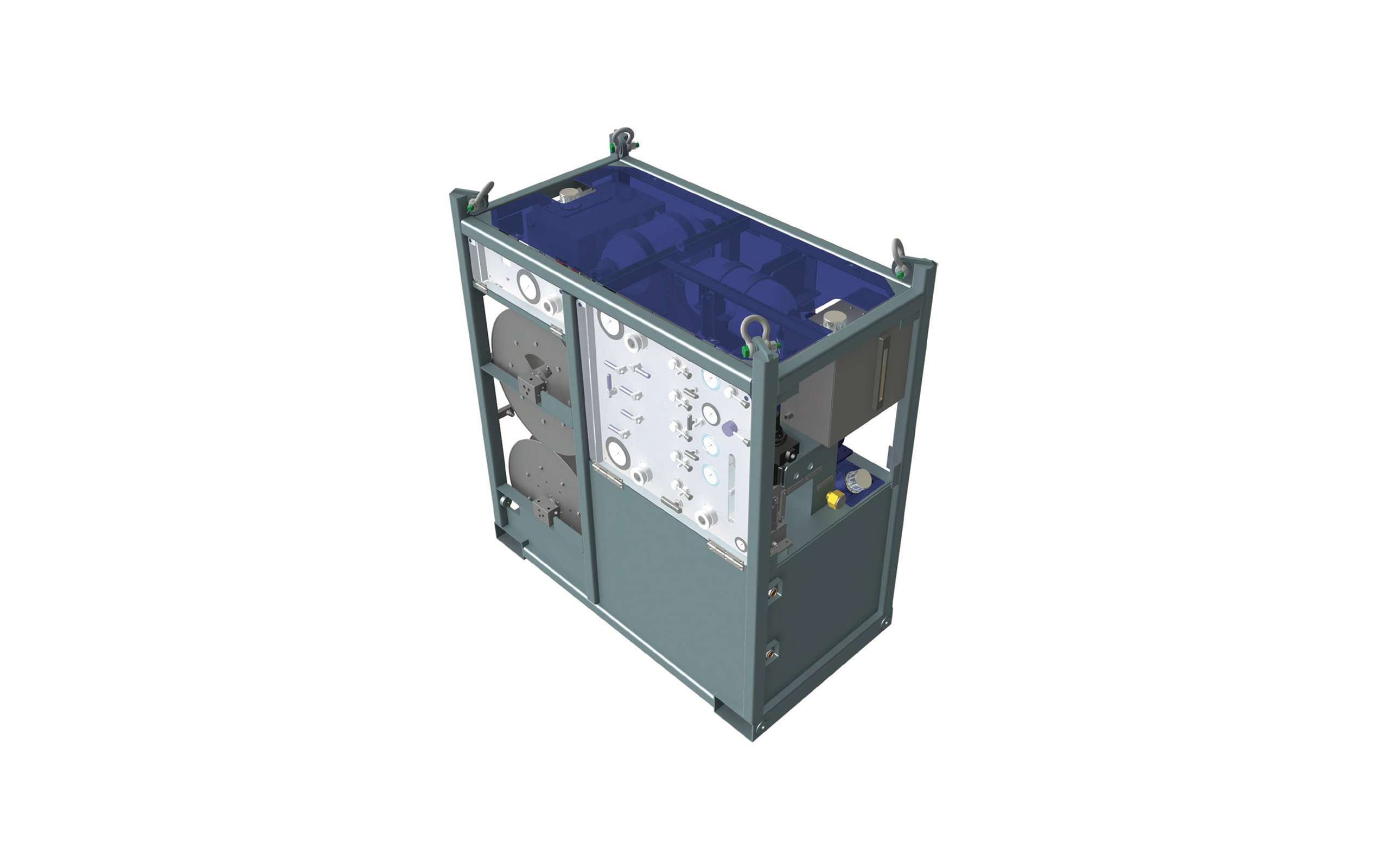

Rendering of metal box with control elements at front

Skid Mounted Grease Injection Hydraulic Control Units

Combines all of the hydraulic functions of a Hydraulic Control Unit with the grease injection functions of a Grease Injection Unit in one compact frame

Product summary

Hunting’s standard control unit for E-line operations combines all of the hydraulic functions of a Hydraulic Control Unit with the grease injection functions of a Grease Injection Unit in one compact frame.

With an upright stance that allows the operator to work from a standing position, whilst monitoring what is happening at the wellhead.

Applications

  • Similar to the Hydraulic Control Unit, the Grease Injection Control Unit supplies a grease injection facility for use with Braided Line applications.

  • The standard unit will supply grease to a Grease Injection Control Head and a Wireline Valve as well as supplying Hydraulic power to a Dual or Triple Wireline Valve, Tool Catcher, Tool Trap, Single or Dual Grease Head Pack Off or Line Wiper.

Features

  • Combining al the hydraulic functions of a hydraulic control unit with the grease injection of a grease injection unit in one compact frame

  • Upright stance allowing the operator to work in a standing position whilst continuing to monitor what is going on at the wellhead

  • Central hose reel

  • Two pumps are supplied for each grease injection system which can be used individually or in unison for maximum possible flow of grease

  • Stainless Steel frame to increase life span and minimise maintenance

  • Air pumps used are selected on performance to ensure minimum maintenance

  • Air motor drive hose reels

  • Storage locker

  • Additional 10 litre accumulator

Benefits

  • Central hose reel means safe and convenient storage of the well as well as easy deployment and retrieval of the hose
