Logging And Perforating Instruments

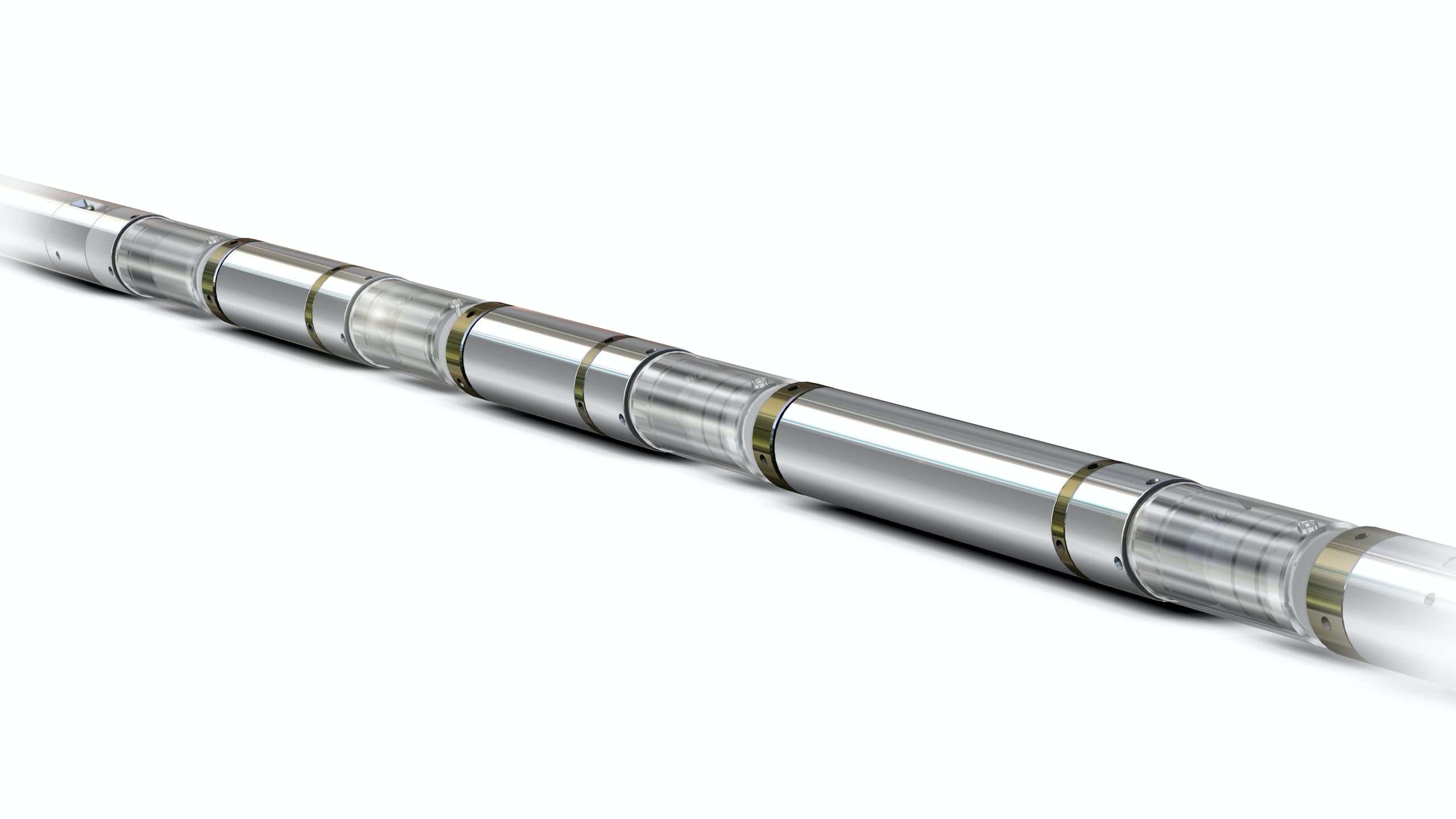

Cement Bond Tools | 3-5 ft
Hunting's standard single transmitter Cement Bond Log (CBL) tool accurately determines casing bond by measuring the amplitude of the first arrival at the 3ft receiver.
Product summary
Titan’s family of CBL tools come in a range of sizes to suite casings from 2-3/8 inch (60mm) to 14 inch (356mm). They can be configured to several timing schemes for different logging systems.
The accurate evaluation of a wells cement bond to both casing and formation is necessary to confirm the integrity of isolation between zones and avoid production problems. The standard single transmitter Cement Bond Log (CBL) tool accurately determines casing bond by measuring the amplitude of the first arrival at the 3ft receiver. A deeper investigating 5ft receiver confirms the interpretation and also shows formation bond by a full Variable Density Log (VDL) wave display. Titan’s family of CBL tools come in a range of sizes to suite casings from 2-3/8 inch (60mm) to 14 inch (356mm). They can be configured to several timing schemes for different logging systems.
Applications
Assessment of cement bond quality and hydraulic isolation
Locating top of cement (TOC)
Features
Piezoelectric crystals used in transmitters and receivers
Wellbore and internal temperature sensors
450°F (204°C) flasked versions available
Compatible with Hunting Titan Compensated Neutron, GR-Neutron and CCL
Benefits
16-20 kHz signal provides optimal casing signal and data transmission
Canister architecture allows efficient and easy maintenance
Temperature sensors allow real-time tool quality control
