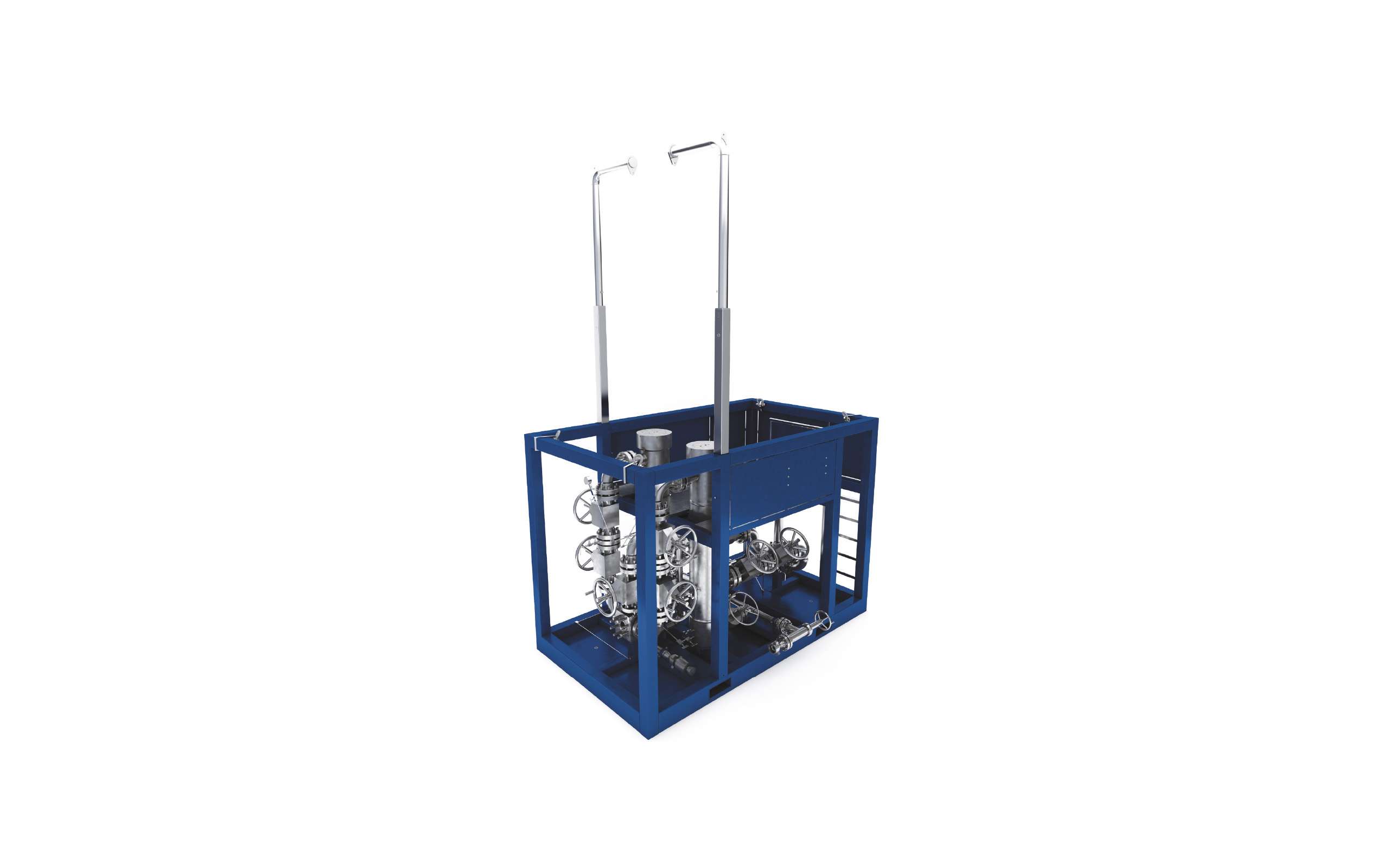

Dual Pot Sand Filter (Type AH) rendering

Dual Pot Sand Filter (Type AH)

Separates sand and other solid particles from the well stream

Product summary

Wellhead sand filtration is established as an industry standard technique for sand and solids removal upstream of the choke manifold during well testing, frac-flowback and well clean-up operations.

The Hunting Dual Pot Sand Filters are available in a broad range of sizes and configurations, up to 20,000psi WP. These products are in service globally with major production testing companies. The principle of sand filtering is well understood, with the minimum size of the separated sand particles determined by the slot size in the sand filter in each pot which are available in a range from 100 to 800 microns. Continuous operation is achieved by switching the flow between the two pots and draining the collected sand from the bottom of the pot that is isolated from the flow. The Type AH Sand Filter is configured for the well to flow from the inside of the filter and the sand to collect therein. The sand can be removed with the filter or purged with water jets.

The Type A-H is custom configured for use in an area where there are height restrictions and is both operated and transported in the horizontal position. It does not need to be swivelled upright for operation and can be used in areas where there are height restrictions.

Optional equipment includes a sand flushing system using pressurized water injection through nozzles mounted on the pot vessel outside diameter and a sandbox for collection of the solids slurry exiting the 2” diameter drain valve.


  • Separates sand and other solid particles from the well stream

  • Dual pot system with high pressure by-pass and dual isolation valves

  • Switching flow between pots for continuous sand removal

  • Horizontal operation and transportation without need to lift to vertical

  • Telescopic lifting support for convenient filter replacement

  • Quick union on pot vessels for rapid filter replacement & maintenance

  • Optional water jet sand flushing system

  • Optional Sandbox for sand disposal


  • Simple to operate

  • Eliminates erosion on choke manifold and downstream process equipment

  • Enables high rate well testing

  • Can be operated in areas with height restrictions

  • Allows representative sand sampling and sand production rate estimation
